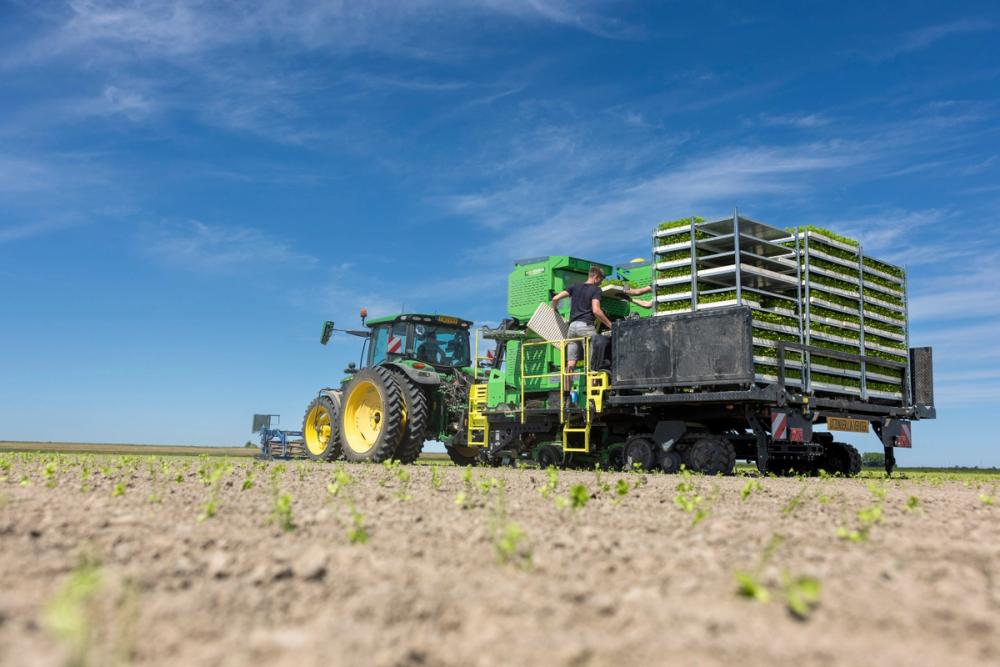

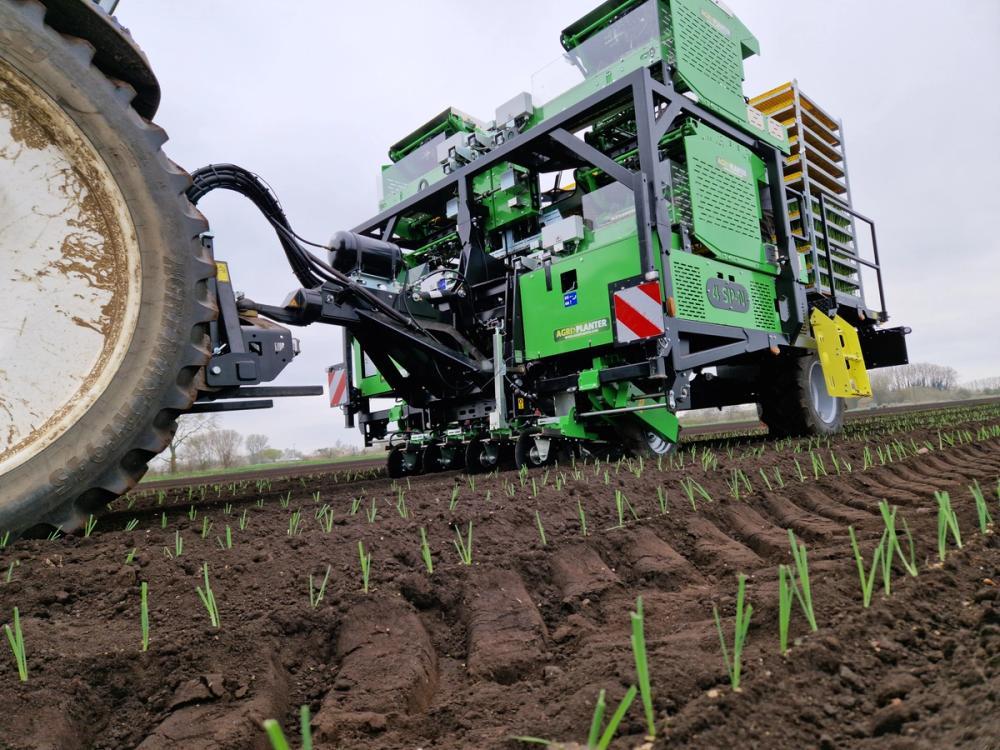

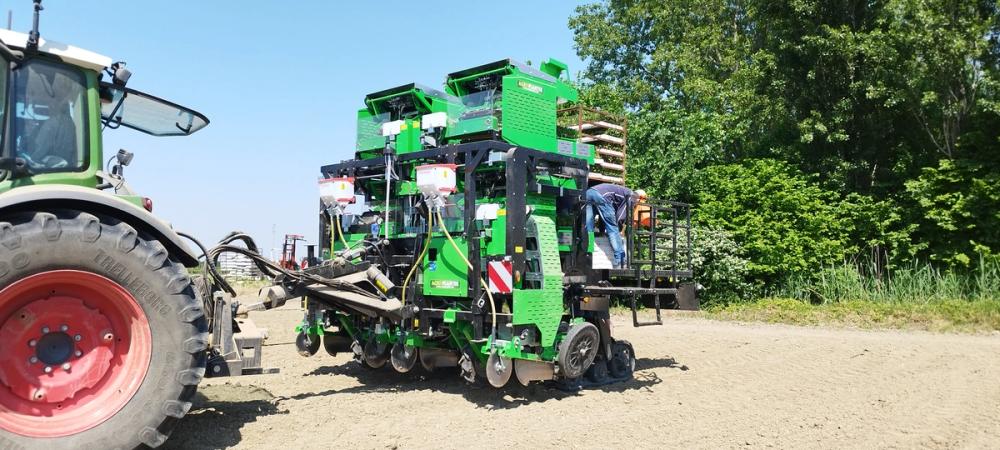

Agriplanter par Agriplant NV

Agriplant NV
Belgium

Agriplant is an innovative family business from Belgium that’s active in the design, production and sale of high quality and reliable automated vegetable planting machines.

Agriplanter par Agriplant NV

Types de cultures

Légumes

Légumes

Commercialisation & Modèle économique

  • Niveau de préparation technologique : 8-9: Test du système, déploiement et opérations
  • Nombre d'unités en service : 151-200
  • Prix : 51K-100K
  • Modèle économique : distributor-network

Caractéristiques techniques

  • Besoin principal du robot : Automatic transplanter
  • Source d'énergie : Fuel, we need a tractor pulling the machine
  • Puissance : Depending on the size of the machine: 60 to 170 HP
  • Taille : 2 row (=2 robots) machine: 652 x 250 x 240
  • Poids net : 2 row machine: 2440 Kg
  • Productivité : 6 to 8 hectare/day

Fonctionnalités et technologies

  • Fonctionnalité : The robot/ extractor unit can extract plants from a tray automatically and it puts the plants down on a conveyor. This conveyor is equiped with a selector. The empty plugs fall out and only plugs with plants go down to the planting element who sets the plants into the soil.
  • Technologies embarquées : "Low pressure hydraulic, if a tray is not possitioned well it will just stop to prefent trays breaking or bending things. No camera systems mounted yet, this will come in the future."
  • Outils : "The robot is adjustable to different trays. At the moment we have more than 100 different trays going through the robot. Hard plastic, Sytrofoam trays,... We can transplant a lot of different crops with the same robot."
  • Connexions : The machine is pulled by the tractor and is self-sufficient. We only need a PTO from the tractor, the machine is equiped with batteries and an alternator for it's own electricity. We can offer data connectivity on the machine. GPS can be mounted on the machine if it has a steerable back axle.

Phase de développement

  • Prochaine phase de développement : Camera to count the plants into the grond and give each plant a GPS position. So weeding can be done through GPS.
